AVAILABLE
MIDEA CELEST HIGH WALL FULL DC INVERTER MSCE-25CRFN8 3.0HP
Product Description
MSCE-25CRFN8 — 3.0 HP
Control
Control type: Remote-controlled
Rated Performance
Capacity: 3.0 HP
Type: Full DC Inverter, cooling only
Rated cooling capacity (Btu/h): 24,000

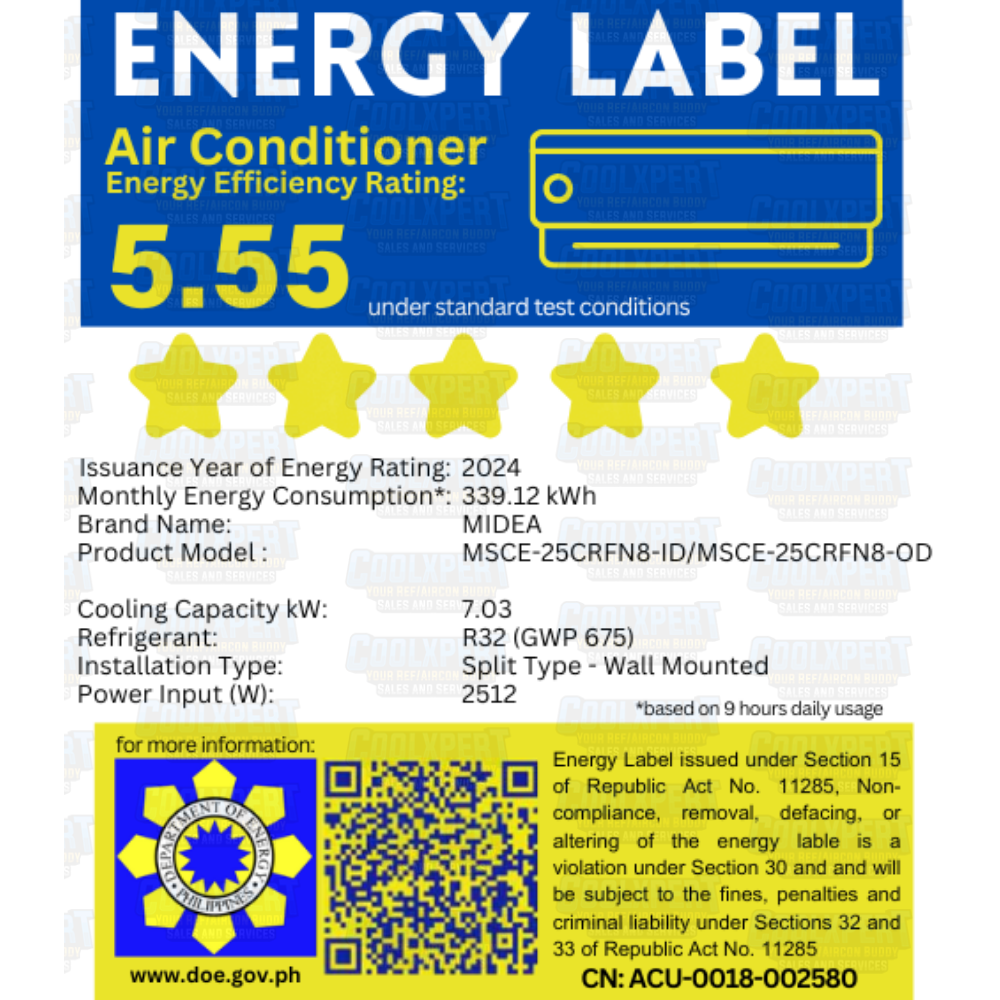

CSPF (W/W): 4.95
Energy Star: 4-Star
Electrical System
Power supply (Ph-V-Hz): 1 Ph–230 V–60 Hz
Rated current — cooling (A): 10.92
Rated input — cooling (W): 2,512
Refrigerant Type
Refrigerant/charge: R32 / 830 g
Fan System
Indoor air circulation (m³/h): 1,300 / 960 / 760
Indoor fan motor type: Brushless DC
Indoor noise level — High/Medium/Low (dB(A)): 47 / 40 / 36.5
Outdoor noise level (dB(A)): 59
Connecting Pipe System
Connecting pipe — liquid: 1/4 in
Connecting pipe — gas: 1/2 in
Maximum refrigerant pipe length: 50 m
Maximum difference in level: 25 m
Connecting wiring: 4 × 2.5 mm²
Others
Indoor dimensions (W × D × H): 1,055 × 231 × 330 mm
Outdoor dimensions (W × D × H): 805 × 330 × 554 mm
Indoor net/gross weight: 12.1 / 15.8 kg
Outdoor net/gross weight: 29.9 / 32.5 kg
PARTS AND SERVICES
1 YEAR
PCB
3 YEARS
COMPRESSOR
10 YEARS
