AVAILABLE

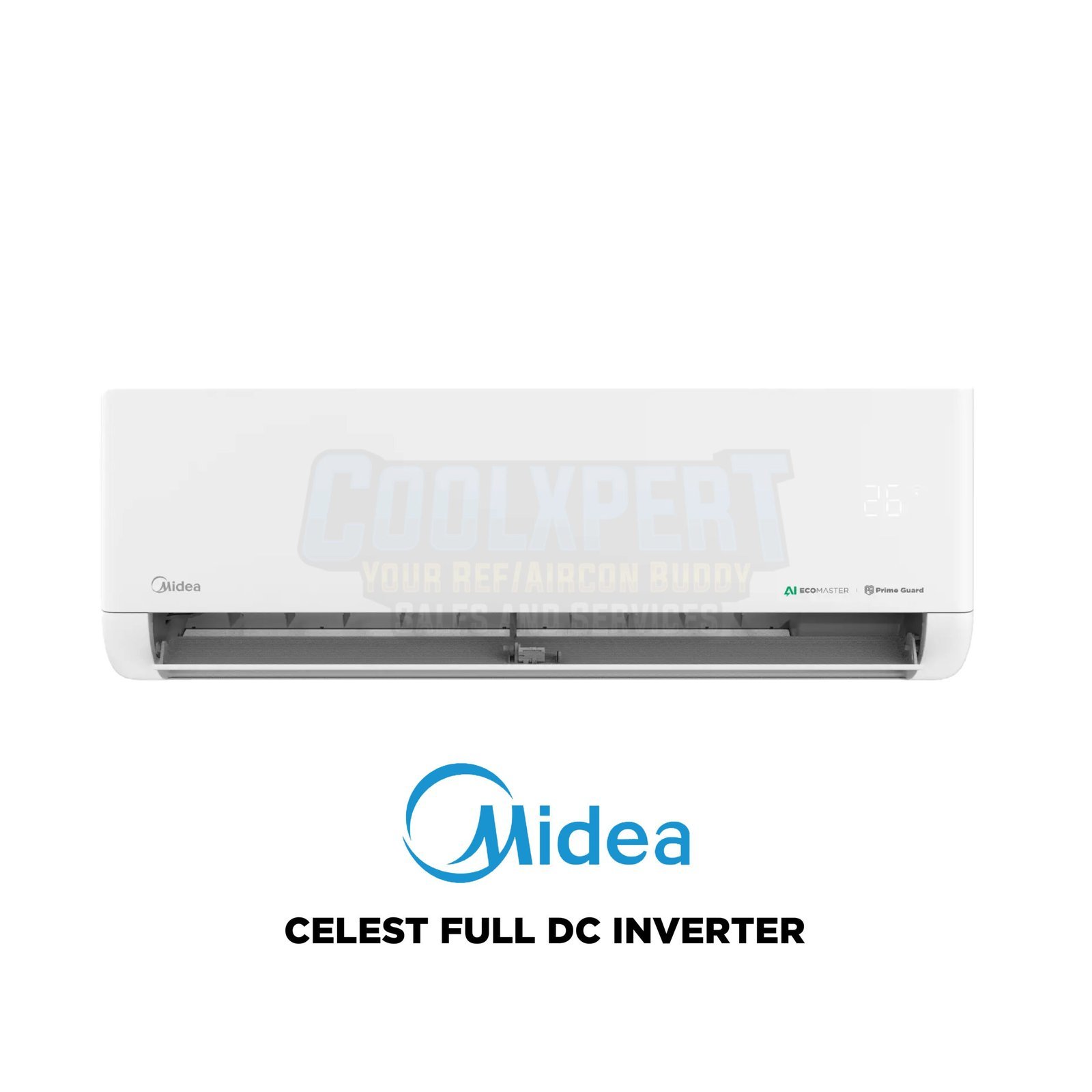

MIDEA CELEST SPLIT TYPE INVERTER MSCE-22CRFN8 NEW MODEL 2.5HP
Product Description
MSCE-22CRFN8 — 2.5 HP
Control
Control type: Remote-controlled
Rated Performance
Capacity: 2.5 HP
Type: Full DC Inverter, cooling only
Rated cooling capacity (Btu/h): 22,000
Rated cooling capacity (kJ/h): 23,210
CSPF (W/W): 5.27
Energy Star: 5-Star
Electrical System
Power supply (Ph-V-Hz): 1 Ph–230 V–60 Hz
Rated current — cooling (A): 9.34
Rated input — cooling (W): 2,149
Refrigerant Type
Refrigerant/charge: R32 / 750 g
Fan System
Indoor air circulation (m³/h): 1,300 / 960 / 760
Indoor fan motor type: Brushless DC
Indoor noise level — High/Medium/Low (dB(A)): 48.5 / 40 / 36.5
Outdoor noise level (dB(A)): 58
Connecting Pipe System
Connecting pipe — liquid: 1/4 in
Connecting pipe — gas: 1/2 in
Connecting wiring: 4 × 2.5 mm²
Others
Indoor dimensions (W × D × H): 1,055 × 231 × 330 mm
Outdoor dimensions (W × D × H): 805 × 330 × 554 mm
Indoor net/gross weight: 12.1 / 15.6 kg
Outdoor net/gross weight: 27.4 / 29.7 kg
PARTS AND SERVICES
1 YEAR
PCB
3 YEARS
COMPRESSOR
10 YEARS
